Rotational Bench Pin: Dovetail Mounting Plate Directions
3 1/4" x 2" x 1/4"

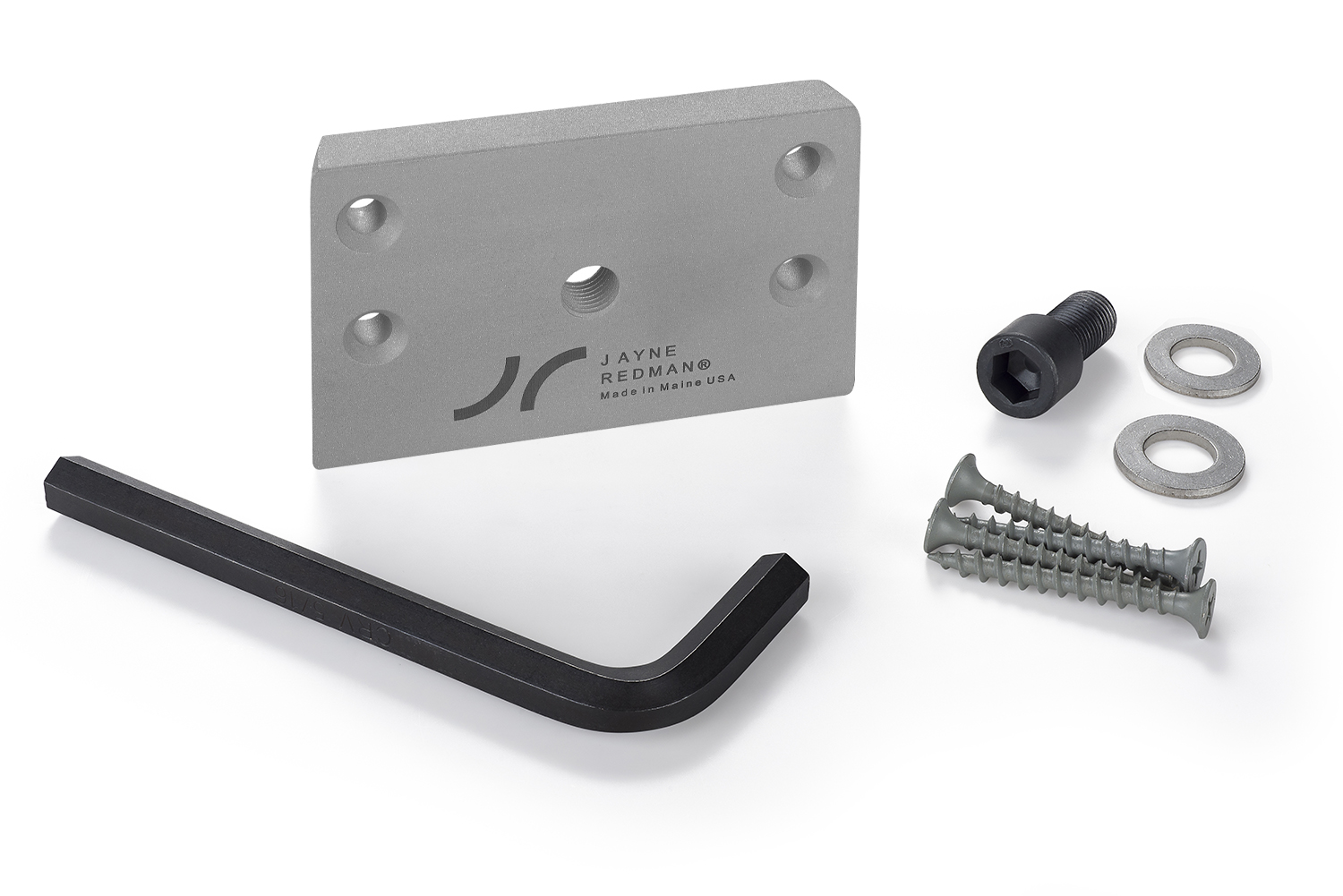

The new Jayne Redman Dovetail Mounting Plate is compatible with any tool requiring a dovetail method of attachment, including GRS® bench tools. The plate has a 3/8” threaded hole that allows for direct attachment of compatible bench systems such as the Swanstrom SawPlate Systems and Jayne Redman Bench Systems. It comes with 4 phillips head screws to attach the plate to the front of your bench, a 3/8” socket head screw and washer, and a hex wrench. The socket head screw allows any tool that is attached to rotate. Use the hex wrench to loosen, tighten, or remove the screw.
Download the User Guide
